The Pronto 6 AS allows for using the seed wagon with front tools in combination with the TurboDisc-tyre packer combination or the Maestro RV.
If the TurboDisc coulter attachment is used for row seeding, high operational speeds up to 20 km/h and thus high hectare outputs are possible. The well-proven Pronto principle seedbed preparation, consolidation and seeding guarantees highest precision in seed placement and safe and high emergence.
The Pronto 6 AS can be combined with a Maestro RV for sowing row crops (e.g. maize and beets). The singulation system of the Maestro guarantees that the crops is sown with the single-grain system and that the seed wagon of the Pronto 6 AS can be used for fertiliser. The preliminary disc harrow for seedbed preparation and for the levelling of the tractor tracks is an additional asset.
The changeover between the TurboDisc coulter attachment and the Maestro RV can be carried out easily and quickly via the integrated 3-point interface of the Pronto 6 AS.
The Pronto 6 AS can be equipped with a large single hopper (3 500 l) for a long range. A double hopper (5 000 l) for placing seed and fertiliser is available as an option. The fertiliser can either be placed together with the seed (G & F) or as a separate underground fertilisation (PPF) beside the row.
The chassis of the Pronto 6 AS is equipped with a separate axle. All turning manoeuvres and road transports are carried out on large tyres (800 / 45 – 26.5).
In working position the tyres in connection with the TurboDisctyre packer combination are lifted completely so that the targeted consolidation is carried out by the tyre packer. If the Maestro RV is used, the transport wheels reliably carry the weight of the seed wagon. Die Pronto 6 AS particularly shows its advantages on contracting farms and farms with large distances between the fields.
Even germination is the basis for high yields
TurboDisc seed coulter – precise seed placement at high speeds
Tyre packer with optimised tractor profile
Effective consolidation in front of each seed coulter
Transport system Pronto AS
Large tyres (800 / 40 – 26.5), low draft requirement and reduced soil pressure
3-point linkage
Quick and simple exchange of implements

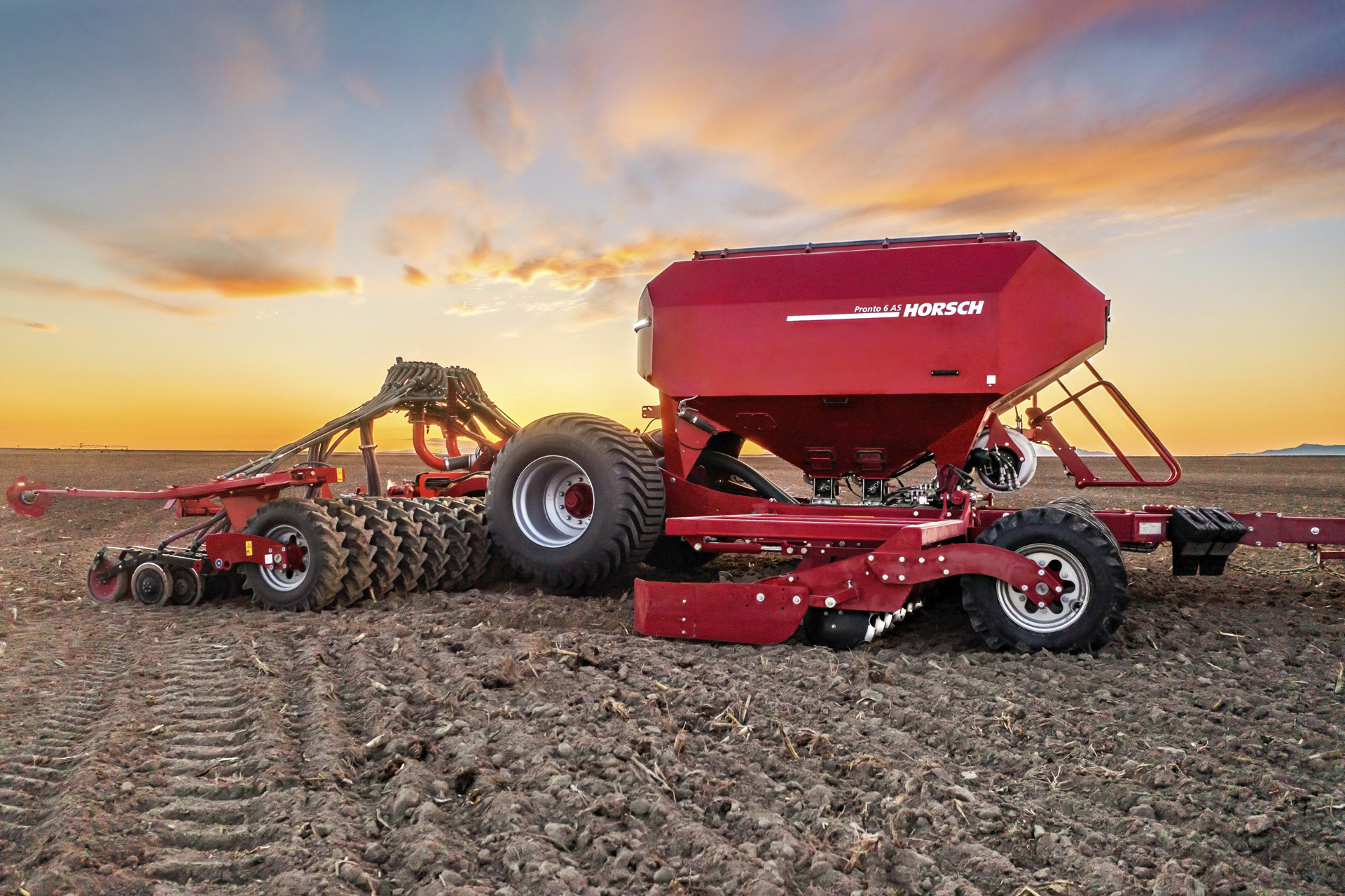

Pronto 6 AS
- Safe emergence due to perfect embedding of the seed
- Maximum utilisation of the ideal sowing time due to top hectare output and operational speeds of up to 20 km/h
- Simpler, safer, faster – this motto is true for the whole adjustment process
- Versatile and flexible use: different hopper systems for up to three individual components
- Fertilisation to the point: PPF or G & F fertilisation systems
- Maximum flexibility due to exchangeable coulter bar
- Transport axle for long distances between the fields
TECHNICAL SPECIFICATIONS
| HORSCH Pronto AS | 6 AS |
| Working width (m) | 6.00 |
| Transport width (m) | 2.95 |
| Transport height (m) | 4.00 |
| Length (m) | 9.50 (till end of the coulter) / 10.50 (incl. bout marker) |
| Axle load (kg)* | 7 800 / 9 300 |
| Vertical load (kg)* | 350 / 1 400 |
| Seed hopper capacity (l) | 3 500 |
| Capacity double hopper (I) | 5 000 (40 : 60) |
| Hopper capacity micro-granular unit (l) | 250 |
| Dimension feed opening (m) | 1.00 x 2.40 (single hopper) / per 0.66 x 2.45 (double hopper) |
| Filling height single hopper (m) | 2.70 |
| Filling height double hopper (m) | 2.95 |
| Number of seed coulters / PPF coulters | 40 / 20 |
| Coulter pressure seed coulters / PPF coulters (kg) | 5 – 120 / up to max. 200 |
| Seed coulters / press wheels Ø (cm) | 34 / 32 |
| Row spacing (cm) | 15 |
| Tyres seed waggon | 800 / 45 – 26.5 / 12 TR |
| Tyre packer | Ø 78 cm – 7.50 / 16 AS |
| Working speed (km/h) | 10 – 20 |
| Power demand (kW/hp) | 130 – 185 / 180 – 250 |
| Double-acting control devices | 3 (resp. +1 for filling auger, coulter pressure adjustment, Crossbar) |
| Depressurized return flow (max. 5 bar) | 1 |
| Oil quantity hydr. fan (l/min) | 20 – 25 (single hopper); 35 – 45 (double hopper) |
| Oil quantity hydr. fan vacuum Maestro RC (l/min) | 25 |
| Linkage seed 3-point linkage | 3-point Cat. II / III |
| Lower link linkage | Cat. II / III – III – III / IV |
| Adj. draw linkage | Bolt Ø 40 – 50 mm |
| Ball-type linkage | K 80 |
* Weight of the machines unloaded with minimum / maximum equipment
Features
Single hopper
Radar sensor
Smooth, precise metering rotors
Tank discharge opening
Tool box
Robust control sensors
Double tower version
Intermediate packing system
Front packer end-to-end
Precision harrow
Lights
Marker
Track eradicators
Half-width shut-off electric Pronto 6 AS
Draw linkage
2-point linkeage
Ball head coupling
Pre-emergence marker
Hydraulic Crossbar
Hydraulic coulter pressure adjustment is available as an option
Hydaulic fan
PTO driven pump
Tramline system
Stop slide Pronto single hopper version
Simple calibration
Quick and precise calibration
