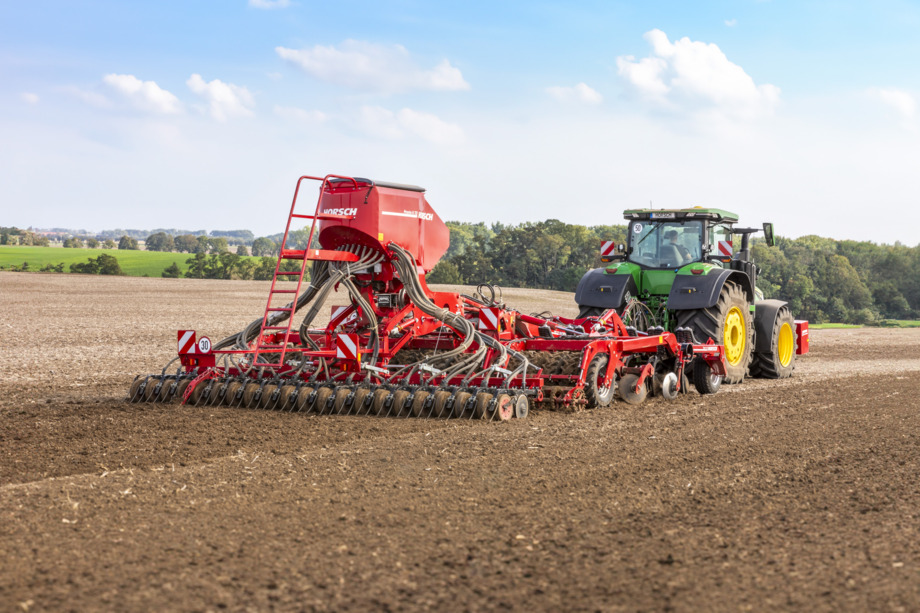

• Horsch product image - Disc seed drill: Pronto 4 TD Seed drill with TurboDisc coulters for Tiger

Pronto TD

Combination of cultivation and seeding

Pronto TD

Pronto technology as an addition to Tiger

Characteristics
Advantages of Pronto TD
  • Addition to Tiger to combine cultivation and sowing
  • Particularly suitable for light and medium soils
  • Suitable for sowing of all crops
  • Available for all HORSCH Tiger 3 to 8
  • Our packer concept is a prerequisite for a good crop emergence in wet and dry conditions
  • Turbo Disc seed coulter with uniformer for a  considerable clogging reduction and exact seed placement
  • Uniform planting depth over the entire field due to predefined depth difference between packer system and coulter
  • Hopper with a capacity of 2,000 litres
  • 3 - 7,50 m working width
  • Power demand starting at 25 kW / 35 HP
Distinguishing Features of Pronto TD
  • Combination of soil cultivation with Pronto seeding technology
  • Seeding machine with drill manager functioning  fully pneumatic
  • Ideal germination conditions through optimum utilization of soil moisture
  • Each tire of the Tiger is followed by two TurboDisc coulters of the Pronto TD
  • Elimination of overlapping coverage
  • The scraper between the packer tyres has decisive advantages in wet conditions as its large clearance allows for a uniform consolidation over the entire working width
  • The coulter pressure adjustment guarantees an even emergence in changing conditions
  • Pronto TD Horsch Abbildung
  • Seed hopper capacity 2,000 l, metering unit, fan
  • Saves time and passes: cultivating and sowing in one single pass
  • TurboDisc coulter bar
  • Individual seed depth adjustment by means of AluClips

Pronto TD

Universal seeding technology for all conditions

HORSCH Pronto TD 3 TD 4 TD rigid 4 TD 5 TD 6 TD 8 TD
Working width (m) 3,00 4,00 4,00 4,80 6,00 7,50
Transport width (m) 3,00 4,00 3,00 3,00 3,00 3,00
Transport height (m) 3,30 3,30 3,30 3,30 3,30 3,70
Additional length Tiger (m) 2,90 2,90 2,90 2,90 2,90 2,90
Additional weight Tiger (kg)* 1 580 1 850 1 970 2 120 2 380 2 990
Seed hopper capacity (l) 2 000 2 000 2 000 2 000 2 000 2 000
Dimension of feed opening (m) 70 x 125 70 x 125 70 x 125 70 x 125 70 x 125 70 x 125
Filling height (m) 3,10 3,10 3,10 3,10 3,10 3,10
No. of seed coulters 20 28 28 32 40 52
Seed coulter pressure (kg) 5 - 120 5 - 120 5 - 120 5 - 120 5 - 120 5 - 120
Seed coulters/press wheels Ø (cm) 34 / 32 34 / 32 34 / 32 34 / 32 34 / 32 34 / 32
Row spacing (cm) 15 14,3 14,3 15 15 14,4
Power demand (KW/HP) 25-35/35-50 30-40/40-55 30-40/40-55 35-45/50-60 45-50/60-70 55-65/75-90
Double-acting control devices (in addition to Tiger) 1 1 1 1 1 1
Depressurized return flow (max. 5 bar) 1 1 1 1 1 1
Oil quantity, hydr. fan (l/min) 35-45 35-45 35-45 35-45 35-45 35-45

* Weights of the machines with minimum equipment





  • Pronto TD Horsch Abbildung
